Advanced Notebook Routes

This page keeps the broader notebook matrix for advanced users who explicitly want source-checkout launchers, benchmark notebooks, Data + DAG examples, or worker-path inspection.

If you want the smallest newcomer notebook path, use agi-core Demo instead.

Notebook evidence sandbox

Use the notebook sandbox when you want AGILAB to execute a local .ipynb file and collect notebook evidence without first turning it into a full app:

agilab run notebook \
  --notebook analysis.ipynb \
  --params params.json \
  --output run/notebook-sandbox \
  --json

Install the optional runner dependencies with agilab[notebook]. In a source checkout, use uv run --extra notebook agilab run notebook ....

The sandbox writes:

prepared_notebook.ipynb with an injected AGILAB_PARAMS cell,
executed_notebook.ipynb after kernel execution,
redacted stdout.log and stderr.log,
an artifacts/ directory for notebook-created files,
notebook_sandbox_evidence.json,
run_manifest.json for the normal AGILAB evidence path.

The injected cell exposes AGILAB_PARAMS, AGILAB_PARAMS_PATH, and AGILAB_ARTIFACT_DIR. Keys in params.json that are valid Python identifiers are also added as globals for concise notebook cells.

This is a reproducibility sandbox, not hostile-code isolation. Run trusted notebooks locally, or add an external container/VM boundary before using untrusted notebooks.

Import, recovery and reviewed source edits

In PROJECT, choose From notebook when creating a project; in WORKFLOW, open Notebook and upload the notebook. If setup cells block import, review their explicit conversion first as described below. Review the runtime roles, then select Preserve notebook state to compile the selected runnable cells into one stage. Variables, aliases, mutations and function globals remain in the same Python namespace when that stage runs, in original cell order. The option is off by default, keeping the existing cell-by-cell editing mode available.

State preservation requires one reviewed runtime and environment for the selected cells. Incompatible choices block import before files are written or a project is cloned; choose consistent runtimes or define explicit artifact boundaries before splitting the work. A selected cell still needs its inputs; the option does not restore omitted cells or a previous Jupyter kernel. AGILAB supervisor exports keep their authored workflow graph in either mode. For an ordinary notebook, reimporting cells already present in a shared stage uses an explicit reviewed update, as described below. Adding overlapping cells as another shared stage remains blocked so the workflow cannot silently retain both copies; unrelated stages remain intact.

Import only prepares the workflow: it does not execute notebook code, install packages or prove result correctness. Supply the required files and dependencies before running it through the normal workflow controls. Compiled stages retain the original cell sources and their hashes in lab_stages.toml.

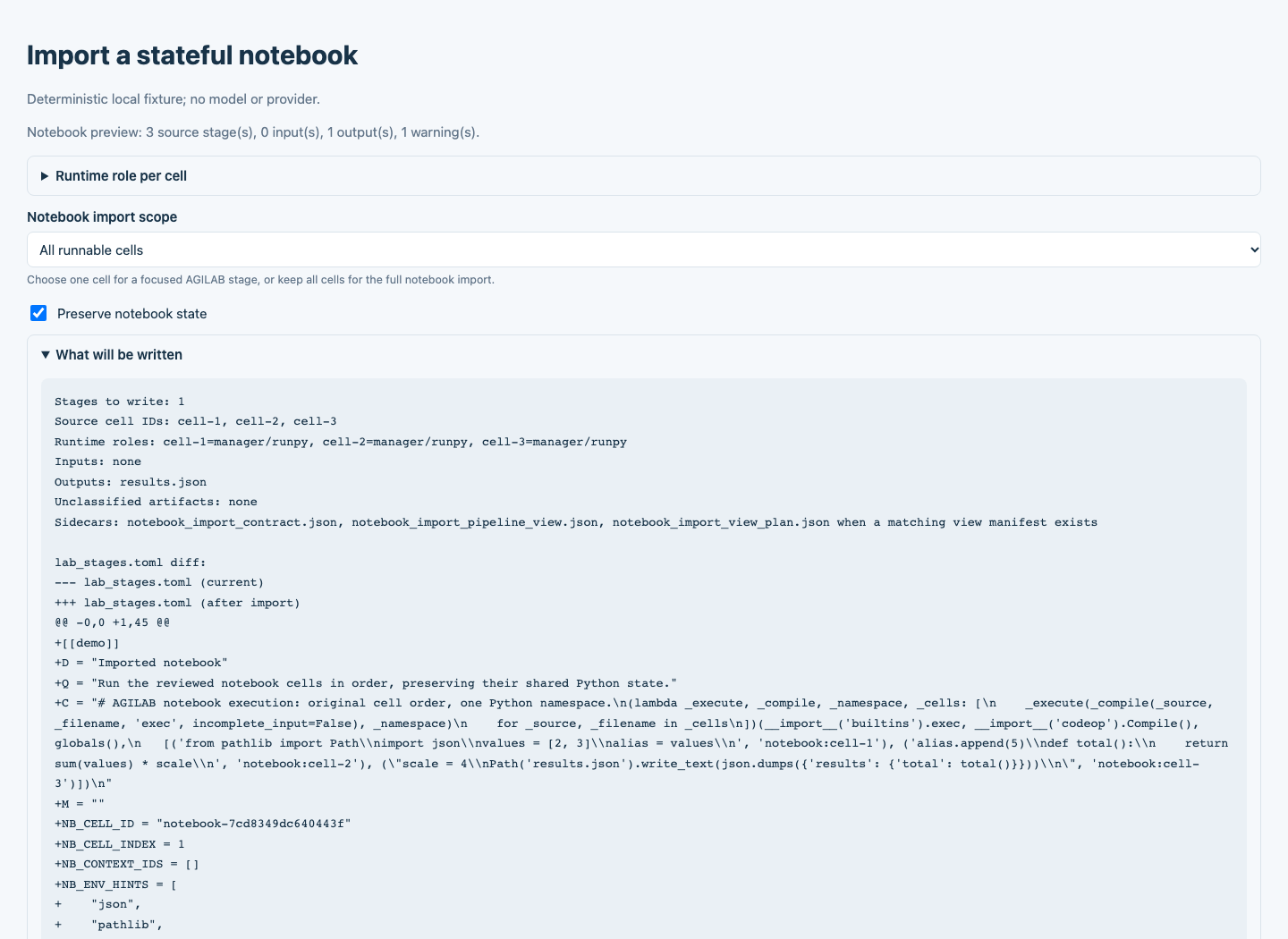

Notebook import review with Preserve notebook state selected — State preservation selected in the native notebook import review. This deterministic local fixture demonstrates import controls, without a live provider call. Import itself does not run the notebook.

Update an imported notebook

After editing an ordinary source notebook, upload it again in WORKFLOW. Select Preserve notebook state, then choose Update existing notebook stage under Notebook import action. Review the added, changed and removed source cells and the proposed stage before pressing Update notebook stage. Add notebook stages remains the separate action for a new import. Cancel import leaves the project files unchanged.

This update route applies to an ordinary notebook already imported as one shared stage. Keep its stable, unique Jupyter code cell IDs. Missing or ambiguous source identity and inconsistent runtime choices block replacement and require review.

The reviewed update replaces the matching notebook-backed stage. It retains unrelated stages, including handwritten project stages, and repeating an update does not append another copy of the notebook stage. Changes to the target after review, or conflicting edits to the imported stage, block the update and require a fresh review. AGILAB does not merge conflicting source edits automatically. An authored AGILAB supervisor workflow retains its separate graph contract.

After a successful update, Download previous notebook import saves a recovery bundle containing the exact earlier import files, their hashes and any recorded absences. Keep that bundle before making further changes. It is a recovery download; applying it is a separate manual operation. Updating an import does not execute notebook cells, install packages or verify new results. Use the normal workflow run and evidence verification after reviewing the source.

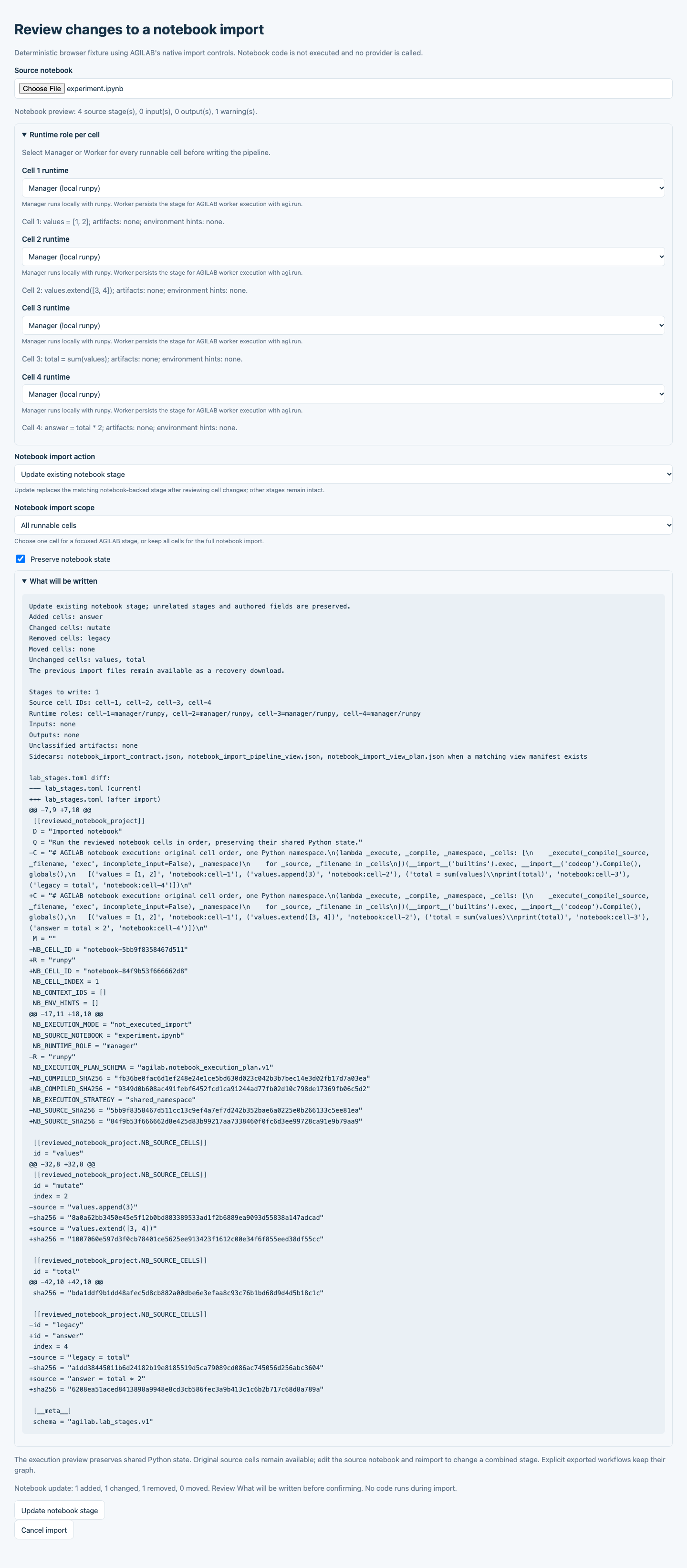

Native notebook import review with Update existing notebook stage selected and source cell changes visible — Reviewing changes before replacing an existing notebook-backed stage. This deterministic local fixture uses the native import controls and a real upload, without a provider call or notebook execution.

Review setup cells

For simple notebook setup, open Notebook setup review and choose the exact Setup cells to convert. Nothing is selected by default. Review the source diff and Declared requirements before confirming import or project creation.

Selected simple %pip or !pip install requirements become declarations; %matplotlib inline becomes an explicit non-interactive batch backend. AGILAB reruns import preflight and runtime review on the converted source. Unsupported installer options, URLs, requirement files, arbitrary shell commands and other magics still require manual conversion. Unconverted blocking cells continue to block import. Conversion does not install packages, run code or establish that an execution environment is ready; prepare the required packages and inputs before execution.

Download notebook before setup conversion recovers the preserved notebook document, including its cells, metadata, outputs and attachments. This preserves JSON content, not the upload’s original whitespace or byte formatting. Successive conversions retain the first preserved document; for an already-converted upload it may predate that upload. Ordinary source export returns the reviewed notebook. The existing import contract stores both the reviewed document and the hash-verified earlier document, without replacing the source upload.

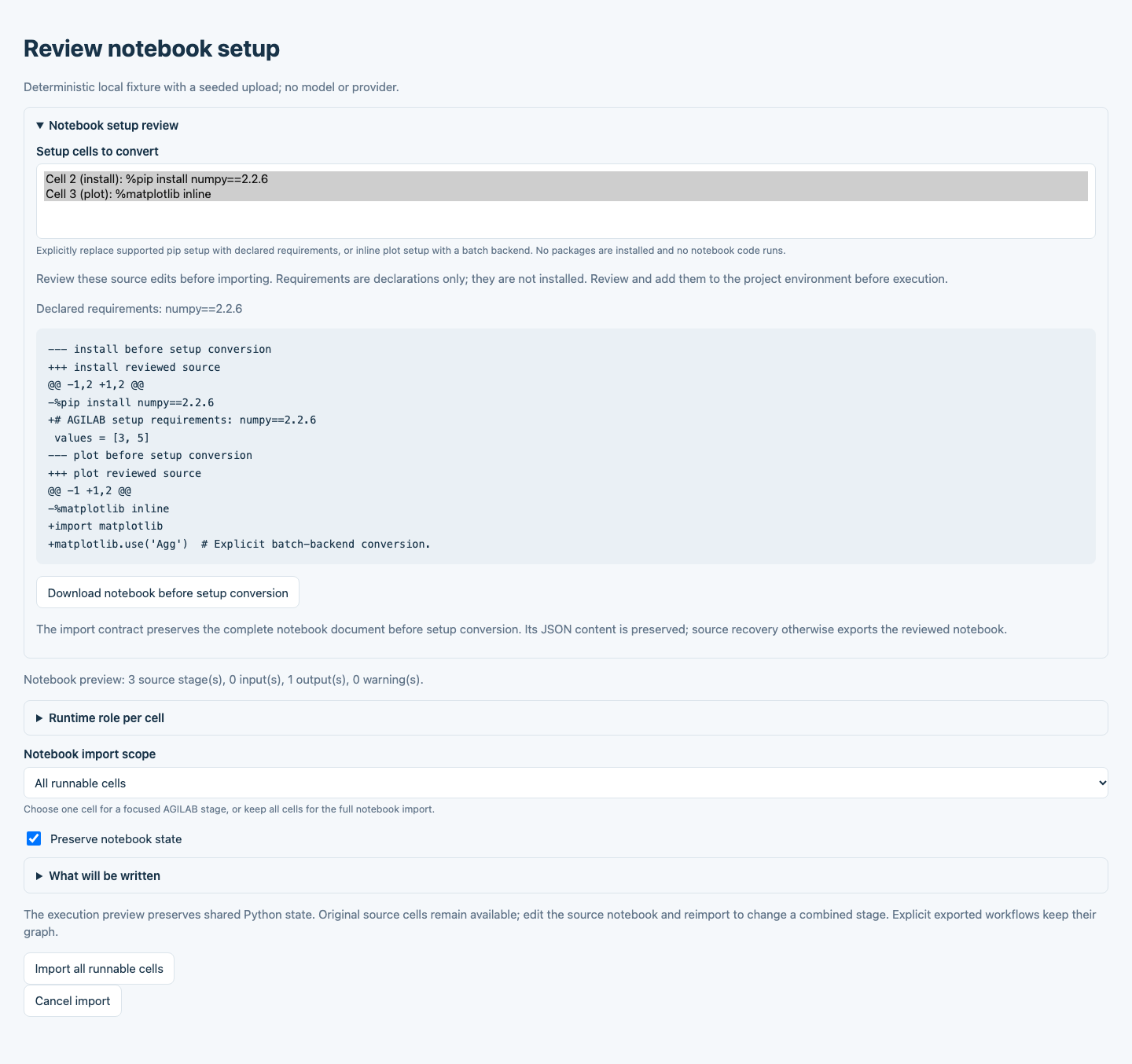

Notebook setup review with selected cells, declared requirements and source changes — Explicit setup selection and source review in the native notebook import. This deterministic local fixture demonstrates conversion controls without a provider call, package installation or notebook execution.

Source recovery

The WORKFLOW notebook upload path preserves a complete, hash-verified source document in notebook_import_contract.json. The original source remains recoverable without executing it. Cell IDs, ordering, raw and empty cells, attachments, outputs, custom metadata and the original kernel metadata survive a source recovery.

Use the WORKFLOW downloads, or:

python -m agilab.notebooks.notebook_pipeline_import source-export \
  --contract notebook_import_contract.json \
  --output agilab_authored_notebook_recovered.ipynb

For reviewed source edits, add --cell-edits agilab_reviewed_notebook_cell_edits.json. Edited cells have their stale output and execution count cleared, with original and edited hashes recorded in provenance. Compilation and recovery are distinct: a stage combining multiple original cells cannot always be split safely back into those cells.

An unsupported kernel, arbitrary shell command or foreign-language magic is diagnosed before a Python import is presented as executable. The original notebook remains recoverable. The equivalent command-line setup route requires an explicit --convert-setup-cell CELL_ID selection, repeated for each selected cell:

Simple %pip or !pip install plain-index requirements become declared dependencies without installing packages during import.
%matplotlib inline becomes an acknowledged non-interactive backend.
Successive conversions preserve earlier requirements and source provenance.

These Python routes do not certify R execution, hosted Colab or Kaggle, or distributed INSTALL and EXECUTE. Those routes retain their own runtime and validation requirements. See Native React UI and notebook export for the shared React and Python views.

Recover a notebook-to-app build

If the local notebook builder completed generation but failed during verification or workflow import, reopen the saved run:

agilab-notebook-demo --resume /path/to/the/failed-notebook-run --ui

Opening the run only displays its evidence. Choose Retry verification when recovery is available. This reruns generated Python locally and reuses the same run folder and generated files without another provider call. The UI shows progress and reports refusals even when the previous failure report is preserved. Without --ui, the same command immediately attempts command-line recovery.

Recovery requires an unchanged verified checkpoint, source, supplied inputs, generated files, checkers and runtime identity. Concurrent attempts, incomplete provider evidence and interrupted retries without terminal evidence are refused. An AGILAB upgrade can invalidate recovery for an older run; reopening its report does not migrate its checkpoint. Fix the reported prerequisite rather than editing protected build files. Runs without a verified checkpoint require a new build.

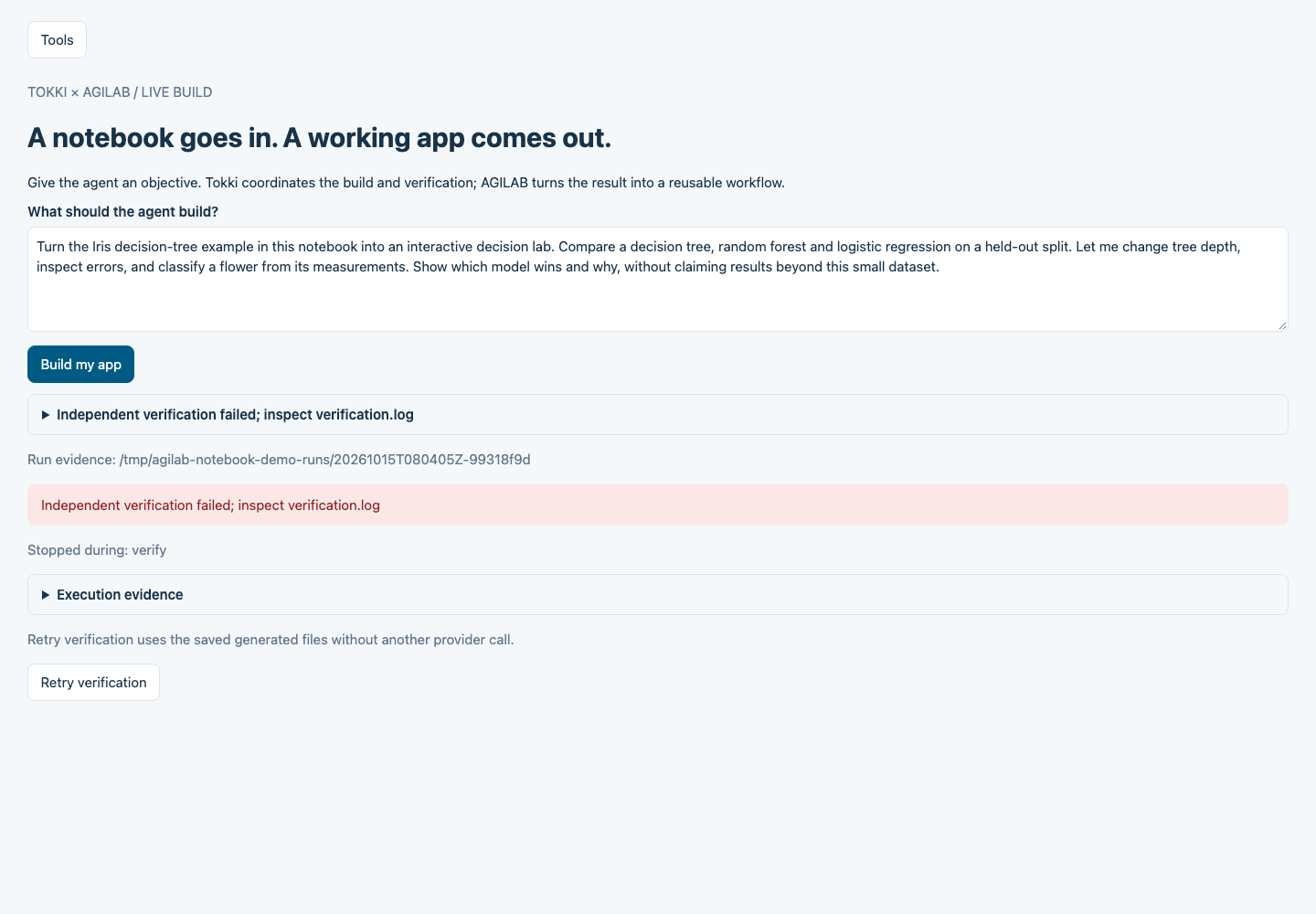

Local notebook builder showing Retry verification for an existing failed run — The local builder offers verification recovery for the same generated run. This fixture demonstrates the recovery controls; it is not a live provider build. The visible temporary run path is normalized for documentation.

Source-checkout launchers

Use these when you intentionally want GitHub main instead of the current published package.

Colab source route: Open First Run In Colab
Kaggle source route: Open First Run In Kaggle

Both launchers clone the repository, prepare an isolated runtime venv, and run the built-in Minimal App example app (internal id minimal_app_project) without mutating the base notebook kernel packages.

Kaggle note: enable Internet in the notebook settings for the first install.

Other notebook entry points

Benchmark benchmarks the built-in Minimal App example app across the default AGILAB mode sweep and renders a ranked comparison table.
Data + DAG is the advanced source notebook for a data-worker app and a DAG-style app.
Worker Paths is the advanced source notebook for worker-class and source-path inspection.

Published-package variants

Use these when you explicitly want the current PyPI release but still want the broader notebook matrix rather than the newcomer quickstart.

Repository launch flow

From the AGILab repository root:

CHECKOUT="${AGILAB_CHECKOUT:-$HOME/agilab-src}"
git clone https://github.com/ThalesGroup/agilab.git "$CHECKOUT"
cd "$CHECKOUT"
./install.sh --install-apps
uv run --with jupyterlab jupyter lab src/agilab/examples/notebook_quickstart/agi_core_first_run.ipynb

If you also want local Ollama-backed models available in the same source checkout, rerun the installer with the families you want:

./install.sh --install-apps --install-local-models gpt-oss,qwen3-coder,devstral,ministral,phi4-mini

Supported values are gpt-oss, qwen, deepseek, qwen3, qwen3-coder, devstral, ministral, and phi4-mini. The first requested family becomes the default WORKFLOW local assistant and is persisted in the AGILAB environment file.

The notebook file lives in the repository at src/agilab/examples/notebook_quickstart/agi_core_first_run.ipynb.

Minimal source-checkout notebook cells

Cell 1: create the built-in app environment and local request.

from agi_cluster.agi_distributor import AGI
from agilab.notebook_demo import (
    notebook_app_env,
    notebook_local_request,
    notebook_log_root,
)

APP = "minimal_app_project"  # built-in Minimal App example app
app_env = notebook_app_env(APP, verbose=1)
request = notebook_local_request()
print("App:", app_env.app)
print("Log root:", notebook_log_root(app_env))

Cell 2: run the visible local AGI.run(...) shape.

result = await AGI.run(app_env, request=request)
result

Cell 3: inspect the run artifacts.

log_root = notebook_log_root(app_env)
print(log_root)
