AGILab Architecture

This page gives a single place to understand how the repository is organised, which services collaborate at runtime, and where to hook in when building a new app or extending the platform.

New to AGILab? Start with Quick-Start for a first run, use Architecture in 5 minutes for the compact layer map, then return here when you need the big picture of how the layers fit together.

The short version is:

UI / CLI / notebook
  -> AgiEnv
  -> AGI.run / AGI.install / AGI.get_distrib
  -> worker packaging
  -> local, pool, Dask, or SSH execution
  -> artifacts, evidence, ANALYSIS, notebook export

Everything else in this page explains who owns each part of that path.

Three-plane mental model

AGILAB is easiest to understand as three planes kept in one releaseable monorepo:

Plane	Owns	Main roots
Control plane	Product entry points, runtime APIs, environment resolution, worker packaging, and local/distributed execution.	src/agilab/core/*, src/agilab/lib/agi-gui, src/agilab/lib/agi-web, src/agilab/pages
Payload plane	Apps, page bundles, templates, notebooks, examples, and PyPI payload umbrellas.	src/agilab/apps/builtin, src/agilab/apps-pages, src/agilab/lib/agi-apps, src/agilab/lib/agi-pages, src/agilab/examples
Evidence plane	Proof, audits, release contracts, supply-chain evidence, UI robot outputs, docs mirror, and agent/runbook automation.	tools, .github, docs/source, .codex, .claude, badges

This split is deliberate: the same source tree carries the runtime, the reusable app/page payloads, and the evidence proving those paths.

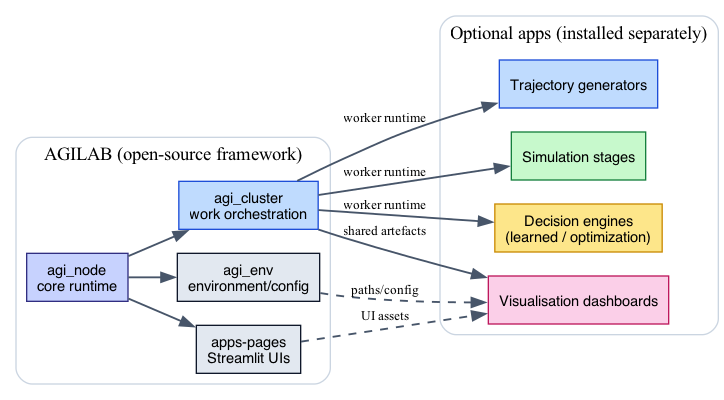

Global AGILAB architecture from entry surfaces to the reusable app contract, runtime back-planes, evidence, portability, and operational guardrails.

Component view

Pyreverse snapshot of how the web interface entry points, agi_core façade, agi_env and agi_cluster exchange data before the workers are started.

Pipeline example

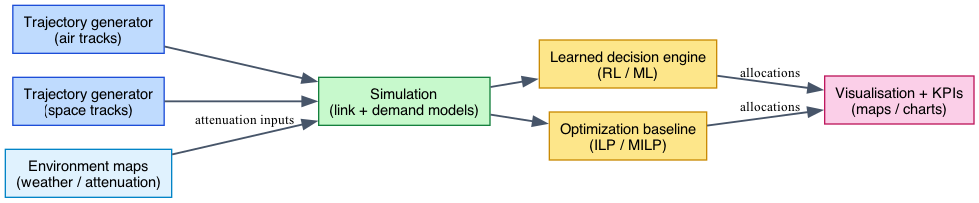

Data flows from trajectory generators and environment maps into simulation stages, decision engines (learned and/or optimization baselines), and finally visualisation and KPI reporting.

agilab.py navigation

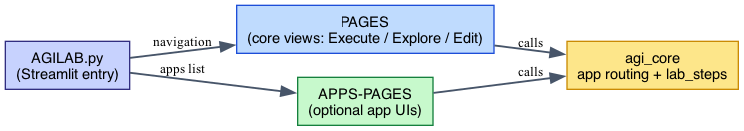

agilab.py exposes the landing and SETTINGS entry points plus core workflow pages (PROJECT/ORCHESTRATE/WORKFLOW/ANALYSIS) and optional page bundles, all routed into agi_core for orchestration.

Manager vs worker responsibilities

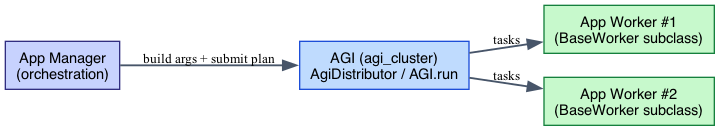

An app manager prepares arguments and submits a WorkDispatcher plan through AGI.run; the selected local/pool/Dask back-plane executes packaged worker runtimes.

setup.py exists only for the worker-dispatch packaging path: some distributed upload paths still serialize worker code as egg archives. Public PyPI release packaging is handled by pyproject.toml and uv.

Runtime ownership

Role	Main code roots	Contract
User surfaces	src/agilab/pages, src/agilab/examples, tools/run_configs	Capture user intent and translate it into the public AGI.* actions.
Framework helpers	agi_core, agi_gui	Keep pages and CLI mirrors thin: app loading, shared widgets, telemetry, and UI/page helpers.
Environment resolver	agi_env	Build an AgiEnv for the active project: paths, settings, shares, logs, and runtime environment variables.
Execution facade	agi_cluster.agi_distributor.AGI	Expose install, get_distrib, run, and service actions used by both UI and automation.
Worker packaging and runtime	agi_node, ~/wenv/<app>_worker	Package worker code, bootstrap worker environments, and run app-specific stages.
Execution back-plane	local process, pool, Dask, SSH workers	Execute one coarse AGILAB work item per worker and return artifacts, logs, and telemetry.
Apps	src/agilab/apps and packaged agi-app-* payloads	Keep project-specific manager code, worker code, settings, datasets, and examples behind the common app contract.

Package names versus runtime roles

Some names are close but not interchangeable:

• agi_core is the shared app/page framework helper layer. It is not the worker runtime.

• agi_gui contains Streamlit-facing helpers and must stay out of headless worker manifests.

• agi_env resolves the selected app, settings, logs, workspace paths, and environment variables.

• agi_node owns worker bootstrap, worker base classes, and worker packaging.

• agi_cluster exposes the AGI facade and the distributor that dispatches local, pool, Dask, or SSH runs.

• agi-distributor is the documentation/API page name for the distributor implemented under agi_cluster.agi_distributor.

Manager and worker dependency rule

AGILAB is intentionally a two-runtime system. The manager/runtime side resolves settings, UI state, snippets, and orchestration. The worker/runtime side runs the packaged worker code from ~/wenv/<app>_worker.

That split is why manager imports and worker imports are different contracts. A dependency or path can be valid on the manager side and still be missing or packaged differently on the worker side.

Practical rule:

• put UI and orchestration dependencies in the app project manifest

• put compute-stage dependencies in src/<app>_worker/pyproject.toml

• do not put Streamlit or page-only dependencies in worker manifests

• when a worker install fails, compare the source worker manifest with the deployed copy under ~/wenv/<app>_worker before changing app code

Execution back-plane boundary

agi-distributor API contains the Dask-based scheduler, worker templates, and capacity-weighted work-plan balancer. Optional cluster helpers for SSH, remote installs, and zip staging live under src/agilab/core/agi-node and are reused by every app.

AGILAB submits one coarse AGILAB task per worker to the outer Dask scheduler. The code that runs inside BaseWorker.works(...) is intentionally opaque to that outer scheduler. This keeps the worker contract stable across plain local, pool-based, and Dask-based execution modes.

If a worker starts its own inner Dask client or scheduler, the outer Dask/Bokeh dashboard only sees the outer AGILAB worker future, not the inner task graph. Treat Dask as AGILAB’s cluster back-plane for workers, not as a supported inner orchestration engine inside one worker process.

Runtime flow

1. A web button, CLI script, notebook, or run configuration selects an app and prepares run parameters.

2. The entry point instantiates AgiEnv with the selected app. AgiEnv resolves symlinks, copies optional data bundles, seeds ~/.agilab/apps/<app>/app_settings.toml from the app’s versioned source app_settings.toml (<project>/app_settings.toml or <project>/src/app_settings.toml) when needed, and loads overrides from that workspace copy.

3. AGI.run (or AGI.get_distrib / AGI.install) selects the dispatcher mode, builds or reuses the worker wheel, and starts a scheduler locally or on the configured SSH hosts. The manager/runtime process does not execute the worker logic directly; it prepares and dispatches the worker/runtime package.

4. agi-distributor API starts workers, streams WorkDispatcher plans derived from the app manager, and feeds telemetry back into the capacity predictor.

5. Results land in ~/agi-space (for end users) or the repo data/export folders (for developers), while logs are mirrored to ~/log/execute/<app>/ for reproducibility.

Apps choose their own distribution unit. For example, the UAV Relay Queue demo (install id uav_relay_queue_project) fans out one scenario JSON file per worker and writes each run into its own output directory so distributed runs can keep per-scenario artifacts isolated.

Two common execution modes:

• Local notebook / laptop – scheduler + workers run on the same machine. Use this for prototyping and keep an eye on ~/log/execute/<app>/ for telemetry.

• Cluster / SSH hosts – scheduler runs locally, workers spawn remotely via the SSH helpers in agi_cluster.agi_distributor. Provide credentials via ~/.agilab/.env and rerun pycharm/setup_pycharm.py after editing run configurations so CLI wrappers stay synced.

Repository map

Tracked repository tree snapshot
